Best Attached Pergola for Patio Construction, Architectural Integration, and Engineering Standards

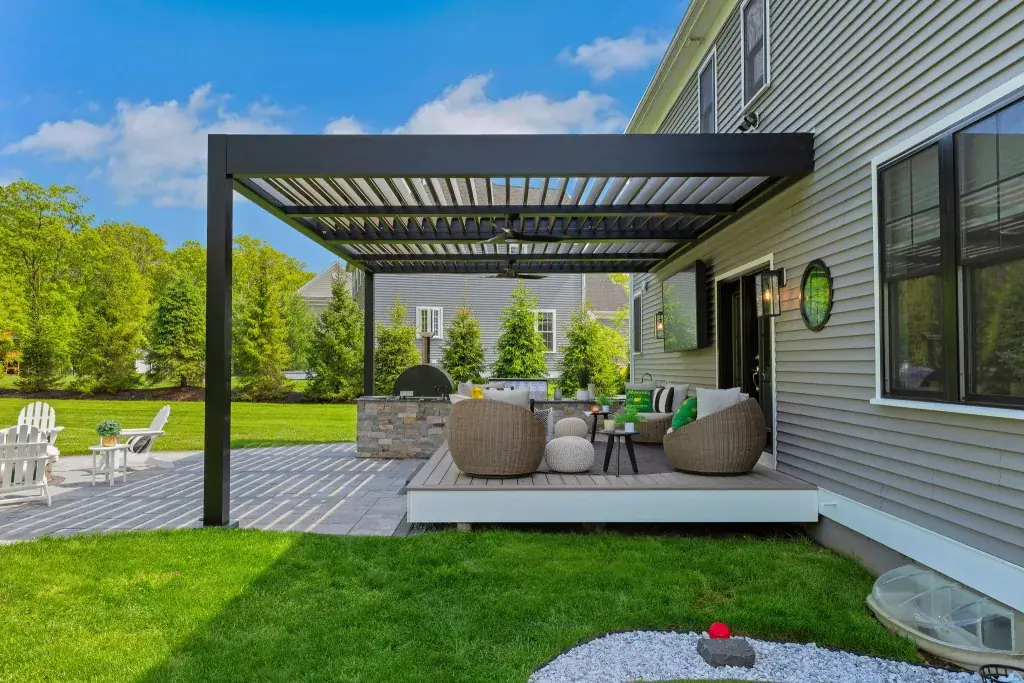

An attached outdoor pavilion requires careful structural balance. Connecting an open-frame shade system directly to a house transforms a simple landscape element into a permanent building expansion. Homeowners often treat this addition as a simple cosmetic purchase. However, anchoring a heavy overhead framework to an existing wall introduces continuous physical forces. Best Attached Pergola for Patio. Every junction point transfers dynamic loads into the primary building frame. Wind uplift, accumulating moisture, and thermal shifts constantly test these attachment points over time.

Choosing the right attached pergola requires analyzing structural engineering, material science, and building science. Simple free-standing garden structures isolated in the yard can shift without damaging other property. Attached structures do not have that freedom. The ledger board connection forms a critical link between the new addition and the house. A failed ledger connection can compromise the structural integrity of the home’s exterior wall, leading to costly repairs.

Modern residential architecture uses diverse framing systems, including engineered lumber, poured concrete, and wood I-joists. Each wall type requires specific anchoring strategies, weatherproofing methods, and load calculations. Selecting the best attached pergola for patio spaces involves evaluating framing connections, environmental exposure, local building codes, and material longevity. A well-designed attached framework provides reliable overhead shelter while preserving the structural integrity of the primary residence.

Understanding Best Attached Pergola for Patio Concepts

Evaluating attached outdoor shade solutions requires looking beyond mere appearance. The term “best attached pergola for patio” represents an optimization challenge with multiple competing factors. Homeowners must balance structural safety, weather protection, maintenance needs, and architectural harmony. A design that succeeds on a sturdy brick wall in a dry climate may fail on a synthetic stucco facade in a wet, coastal environment.

A common misconception is treating attached structures as purely visual enhancements. Homeowners often focus on surface finishes while ignoring attachment mechanics. This superficial view leads people to select systems based on low upfront costs rather than structural safety. Attached structures function as cantilevered or post-supported beam systems tied directly to a home’s primary framework. They must safely handle vertical gravity loads, horizontal wind forces, and seasonal thermal movement.

Evaluating these structures requires a multi-perspective engineering approach. The house connection point must satisfy four main requirements:

Mechanical Fastening Security

Structural anchors must pass through exterior cladding and bite deep into sound framing timber. Screws driven into mere plywood sheathing will fail when strong winds create vertical uplift.

Continuous Water Shedding

Exterior wall penetrations naturally create pathways for moisture intrusion. Flashing details must divert rainwater away from the ledger board, preventing wood rot inside the house wall.

Managed Thermal Expansion

Metals and polymers expand and contract as temperatures change throughout the year. Attachment hardware must accommodate this subtle movement without loosening or cracking adjacent building materials.

Differential Foundation Settlement

Concrete house foundations and patio footings move independently as soils wet and dry. The pergola connection must tolerate minor differential movement without transferring damaging twisting forces back into the house wall.

Historical Evolution of Attached Patio Structures

Shade structures attached to primary dwellings have evolved alongside residential building technology over centuries. Classical Mediterranean architecture relied on stone masonry piers supporting heavy timber beams directly against outer courtyard walls. These early structures provided immediate relief from intense summer sun while creating temperate microclimates near living quarters. Thick stone walls absorbed heat slowly during the day and radiated warmth during cool evenings.

In nineteenth-century European design, wrought iron allowed thinner, lighter shade frames to mount onto brick and stone facades. Cast iron brackets enabled wider open spans with fewer support columns. These early metal systems expanded outdoor living areas without blocking light from lower-floor windows. However, early iron structures required continuous painting to prevent destructive rust in wet climates.

Mid-century American suburban expansion transformed attached patio design by using standardized dimensioned lumber. Western red cedar, redwood, and pressure-treated southern yellow pine became standard materials for residential shade framing. Builders attached ledger boards using lag screws driven into home rim joists. While cheap and quick to assemble, early ledger connections lacked proper flashing, causing hidden rot in home walls across humid regions.

Modern attached structures combine advanced materials science with precise structural engineering. Extruded aluminum alloys, structural vinyl, and engineered wood composites have replaced plain untreated lumber. Integrated drainage channels, motor-driven adjustable louvers, and engineered mounting brackets protect exterior house walls. Contemporary designs focus on continuous weather sealing, code-compliant load transfer, and long-term durability.

Core Structural Frameworks and Load Distribution Dynamics

Understanding structural forces is essential when attaching an outdoor frame to an existing residence. Attached structures operate as hybrid load-bearing systems. The home’s foundation supports one side, while independent piers or patio footings support the outer edge. This multi-support configuration creates complex force paths that shift under varying environmental conditions.

The Ledger Board Connection

The ledger board serves as the critical primary anchor along the house wall. This horizontal beam transfers half of the pergola’s total weight into the building’s structural rim joist. Installers must secure this connection using code-approved structural wood screws or through-bolts spaced according to local load requirements. Screws must penetrate solid framing lumber rather than exterior siding or OSB sheathing.

Flashing and Water Diverter Systems

Installing a ledger board breaks the home’s water-resistant exterior layer. Contractors must install Z-flashing tucked behind the weather-resistant barrier above the ledger. The metal cap extends over the top edge of the board to shed water away from the wall penetrations. Synthetic self-adhering membrane tape provides secondary protection around every bolt hole.

Support Posts and Footings

Outer support posts carry the remaining weight of the attached structure down to concrete footings. Simple patio pavers cannot safely support these concentrated point loads. Footings must extend below the local frost line to prevent seasonal soil movement from lifting the outer edge. Post-to-beam connectors lock the structural framing together, resisting horizontal wind forces that attempt to rack the frame.

Material Categories and Architectural Variations

Choosing the right material dictates long-term maintenance demands, physical strength, and total lifecycle costs. Each material group offers specific mechanical properties and distinct structural trade-offs.

Extruded Aluminum Systems

Extruded aluminum provides a high strength-to-weight ratio for attached overhead frames. Factory powder coatings shield the metal from UV degradation and atmospheric corrosion. Aluminum systems can span wider distances between support posts than natural timber. However, metal frames expand and contract significantly as temperatures change throughout the day. Installers must use slotted mounting holes to prevent structural binding.

Western Red Cedar and Redwood

Natural cedar and redwood contain natural oils that resist insect damage and decay. These softwoods bring natural warmth to outdoor living spaces and complement traditional architecture. Builders can easily cut and join timber on-site to fit custom dimensions. However, natural wood requires regular sealing or staining to slow down UV damage, checking, and moisture absorption.

Engineered Vinyl with Steel Core Reinforcement

Vinyl structures offer clean lines with minimal routine cleaning needs. Pure PVC lacks the strength needed for wide spans, so high-end vinyl pergolas feature internal steel sleeves. These steel inserts carry structural loads while the outer vinyl shell provides weather protection. Installers must seal all vinyl cuts carefully to prevent water from reaching the interior steel reinforcement.

Cellular PVC and Wood-Plastic Composites

Composites combine wood fibers with recycled polymers to create dense, weather-resistant structural components. These materials resist rot and insect damage without regular painting or staining. However, composite beams weigh considerably more than hollow aluminum or natural wood. The heavy weight increases the dead load on ledger board connections and requires heavier post footings.

Practical Planning, Budgeting, and Resource Allocation

Building an attached outdoor structure requires clear financial planning and regulatory awareness. Project costs extend far beyond the base frame kit or raw materials. Homeowners should evaluate both immediate construction expenses and long-term maintenance demands.

Regulatory Compliance and Building Permits

Most local building departments require structural permits for attached overhead additions. Inspectors verify ledger board fastener patterns, footing depths, and wind uplift resistance. HOA guidelines may also dictate allowed colors, roof pitches, and setback distances from property lines. Completing structural plans prior to purchasing materials prevents costly project delays.

Site Accessibility and Foundation Excavation

Digging footing holes near an existing home requires caution around buried utility lines. Gas lines, electrical conduits, and sewer pipes often run through backyards. Contractors must call local utility locate services before excavating post holes. Restricted access for heavy equipment may require digging footings manually, increasing installation labor costs.

System Components, Hardware, and Mounting Mechanisms

An attached shade framework relies on specialized hardware to maintain its structural integrity over time. Connectors transfer forces smoothly across every framing joint.

Ledger Fasteners and Wall Anchors

Contractors use specific fasteners based on the home’s exterior wall material:

• Wood Framing: Code-approved structural wood screws with protective anti-corrosion coatings penetrate rim joists directly.

• Poured Concrete: Expandable wedge anchors or epoxy-set threaded rods secure the ledger board into solid concrete.

• Brick Masonry: Anchors must grip the structural brick wall behind the veneer rather than superficial facing bricks.

Post-to-Footing Standoff Connectors

Metal post bases elevate structural posts above the wet patio surface. Elevating the base prevents standing water from soaking into the bottom grain of timber posts, extending the life of the wood. Metal bases feature thick steel plates that anchor securely into fresh concrete piers.

Rafter Hangers and Wind Uplift Ties

Overhead rafters rest inside metal joist hangers attached to the ledger board. Specialized hurricane ties lock cross-beams to outer support posts. These metal straps resist upward forces from storm winds that can tear unanchored roofs away from home walls.

Vulnerability Landscapes, Risks, and Structural Failure Modes

Attached structures face continuous environmental exposure that tests their weak points. Identifying potential structural failures helps homeowners plan preventative maintenance.

Moisture Intrusion Behind the Ledger

Omitting protective flashing allows rainwater to run behind the ledger board. Trapped water saturates the wood rim joist inside the wall, feeding rot-causing fungi. Over time, decaying wood softens, causing ledger bolts to lose their grip and threatening a catastrophic wall failure.

Thermal Expansion Splitting

Rigidly mounting long aluminum or vinyl beams without movement gaps causes structural stress. As summer heat expands the metal, constrained beams warp, bow, or shear off mounting screws. Using oversized, slotted anchor holes allows the material to slide slightly during temperature shifts without cracking adjacent walls.

Maintenance Protocols, Inspection Cycles, and Adaptation Best Attached Pergola for Patio

Routine inspection schedules keep attached shade structures safe, attractive, and functionally sound over decades of service.

Bi-Annual Hardware Tightening

Seasonal temperature changes and wind vibration gradually loosen framing hardware. Homeowners should inspect and tighten ledger bolts, post connectors, and beam brackets every spring and autumn. Replacing rusted fasteners with stainless steel hardware maintains structural strength over time.

Clearing Drainage Channels

Advanced pergolas with integrated drainage channels require regular clearing to prevent blockages. Dead leaves and twigs collect in louver troughs, backing up rainwater. Trapped water overflows channels, spilling onto patio surfaces and pooling around house wall connections.

Performance Evaluation, Tracking, and Long-Term Value

Evaluating an attached shade investment involves monitoring structural condition, ongoing maintenance costs, and home utility impacts.

Visual Deflection Inspections

Checking horizontal beams for sagging reveals early structural overload. Placing a level along main span beams shows whether heavy snow or dead weight exceeds material limits. Addressing minor sagging early prevents permanent beam deformation.

Wall Intersection Moisture Tracking

Using a moisture meter inside the home behind the ledger board reveals hidden leaks early. Detecting elevated moisture levels early allows homeowners to repair damaged flashing before wood rot develops inside the wall frame.

Structural Misconceptions and Engineering Myths  Best Attached Pergola for Patio

Several common construction myths lead to poor material selection and unsafe installation practices.

Myth 1: Exterior Siding Safely Supports Ledger Boards

Correction: Siding materials like vinyl, aluminum, and fiber cement crush under heavy structural loads. Ledger boards must mount flush against solid framing lumber or masonry walls, using solid spacers where siding remains in place.

Myth 2: Post Bases Can Rest directly on Existing Patio Pavers

Correction: Standard patio pavers float on sand beds designed only for foot traffic. Heavy overhead pergola loads sink pavers into the sand, settling the outer posts and twisting the house attachment points.

Myth 3: Pressure-Treated Wood Never Rots

Correction: Chemical treatments slow down wood decay but do not make timber waterproof. Unsealed end cuts, drilled bolt holes, and trapped surface water allow rot to form inside treated posts over time.

Ethical Sourcing, Microclimates, and Regional Contexts Best Attached Pergola for Patio

Choosing shade materials responsibly involves considering environmental impacts, manufacturing origins, and regional climate conditions.

Timber Sustainability Metrics

Sourcing timber from certified sustainable forests helps preserve natural woodlands. Selecting local species reduces shipping distances, lowering the overall environmental footprint of the project.

Managing Local Microclimates

Local wind patterns dictate how shade structures should align with existing house walls. Strong wind gusts blowing under an attached canopy create powerful uplift forces. Choosing open lattice patterns or adjustable louvered roofs lets high winds pass through safely during storms.

Structural Synthesis and Strategic Recommendations

Selecting the best attached pergola for patio environments requires balancing structural engineering, weatherproofing details, and material durability. The house connection point carries significant weight and must be sealed properly against water intrusion.

Homeowners achieve long-term success by prioritizing solid attachment hardware, proper wall flashing, and deep concrete footings over cheap cosmetic features. Selecting high-quality aluminum, steel-reinforced vinyl, or naturally durable timber creates a safe, reliable outdoor living space. An engineered attached pergola provides reliable shade while protecting the underlying residence for decades.
