Compare modern pergola options: Architectural Shade Analysis

Residential outdoor architecture has evolved rapidly from basic timber shading grids into complex building envelope extensions. Modern exterior design requires balancing structural mechanics, site thermodynamics, and material science to achieve functional open-air living spaces. Unfavorable environmental conditions like coastal salt spray, intense mountain snow accumulation, and severe thermal expansion stress outdoor materials continuously. Compare modern pergola options. Evaluating shade systems requires analyzing post foundations, beam connections, and motorized louver assemblies rather than reviewing superficial aesthetic styles.

Selecting appropriate overhead shade frameworks across distinct residential microclimates demands a clear understanding of material degradation pathways. Structural aluminum frameworks feature specialized powder coatings, whereas heavy timber frames rely on natural organic extractives to resist moisture decay. Steel assemblies offer unmatched structural tensile strength, though exposed welds require rigorous anti-corrosion barrier treatments in humid environments. Improperly anchored structural posts shift under high lateral wind loads, causing structural misalignment and mechanical drive failures. Resolving these structural and material engineering dynamics transforms outdoor living design into an analytical structural discipline.

Furthermore, integrating advanced motorized or automated overhead structures into existing building footprints introduces complex electrical and water management requirements. Internal drainage gutters integrated within structural posts must handle heavy rain bursts without overflowing onto adjacent residential house foundations. Thermal insulation layers and ceiling vapor barriers must be integrated properly when shade frameworks attach directly to exterior residential walls. Addressing these physical, environmental, and mechanical factors ensures that outdoor architectural investments deliver exceptional durability across changing seasonal conditions.

Compare Modern Pergola Options

Material Metallurgy and Physics

To compare modern pergola options thoroughly, architects analyze how raw material chemistry reacts under continuous atmospheric weathering. Marine-grade 6063-T6 aluminum alloys form an inert oxide barrier upon air exposure, preventing deep structural oxidation under humid conditions. Naturally durable wood species like Western Red Cedar contain natural thujaplicins that inhibit fungal decay and insect damage naturally. Selecting appropriate material profiles based on local site chemistry prevents premature structural checking, joint loosening, and cosmetic surface finish degradation.

Structural Load Engineering

High-performance outdoor shade frameworks utilize engineered moment-resisting post bases to transfer wind and gravity loads down into concrete footings. Simple surface-mounted lag screws driven into unreinforced concrete slabs fail rapidly under severe lateral wind racking forces. Heavy steel mounting plates embedded within deep concrete piers provide essential structural rigidity against horizontal shear and vertical uplift forces. Proper connection hardware protects structural integrity, preserving frame alignment during unexpected severe weather events across open residential yards.

Managing Water Drainage and Thermal Expansion

Automated overhead louver systems feature dual-walled aluminum blades designed to channel rainwater directly into integrated perimeter gutter channels. Water flows through internal beam troughs and down inside hollow structural posts, discharging safely onto lower patio drainage surfaces. Long aluminum beams undergo measurable thermal expansion during intense daily solar heating cycles, expanding significantly along horizontal spans. Incorporating floating expansion joints inside beam connections prevents structural fastener binding, noisy frame creaking, and unwanted seam distortion.

Material Metallurgy and Physics

Marine Corrosion Kinetics

Coastal residential sites present severe environmental challenges due to salt-laden airborne droplets settling continuously on structural framing members. Salt deposits draw atmospheric moisture onto metal surfaces, forming an active electrolyte that accelerates galvanic corrosion across vulnerable steel connections. Architectural powder coatings applied over chemical pretreatment layers protect aluminum substrates against severe salt spray pitting and surface blistering. Hardwood frameworks sealed with marine-grade oils resist salt water penetration, preventing wood fiber softening and surface checking.

High-Altitude Alpine Stress

Mountain locations experience extreme winter snow accumulation that places immense downward dead loads onto horizontal overhead support beams. Heavy snow packs freezing across closely spaced shade louvers form solid ice sheets that exert massive mechanical force downward. Deflecting horizontal beams bind mechanical drive shafts, strip internal louver gears, and crack concrete foundation piers underneath vertical posts. Specifying thick-walled structural steel or heavy glued-laminated timber beams ensures that frameworks support heavy alpine snow loads safely.

Structural Load Engineering

Calculating Aerodynamic Uplift Vectors

Open overhead shade structures experience substantial aerodynamic uplift forces as wind sweeps across sloped patio surfaces and open louver blades. Wind moving rapidly over angled louver surfaces creates pressure differentials that pull structural frameworks upward away from concrete foundations. Engineered steel post anchors embedded inside deep concrete piers resist high uplift forces without loosening or pulling out. Calculating site-specific wind pressure vectors ensures that post foundations comply fully with regional high-wind structural building codes.

Transverse Beam Deflection Limits

Horizontal beam span dimensions determine how structural overhead frameworks react under heavy dead loads and unexpected live loads over time. Unreinforced aluminum or wood beams spanning over fourteen feet sag noticeably along center lines under their own structural weight. Center span deflection distorts horizontal louver tracks, binds motorized drive arms, and compromises overall structural alignment across open frames. Inserting internal steel reinforcing tubes or increasing horizontal beam depth stiffens long spans against visible structural sagging distortion.

Deep Contextual Background

Historical Architectural Evolution

Outdoor shade architecture developed from historic Mediterranean stone and timber arbors constructed to support heavy agricultural climbing vines. Classical European garden designs incorporated massive stone columns and hand-carved wood beams to create comfortable shaded walkways between estate buildings. Mid-century suburban developments adopted lightweight pine trellis kits assembled with exposed face nails, offering temporary shade with limited structural longevity. Modern residential architecture utilizes precision aluminum extrusion technology, automated motorized drives, and structural engineering software to build durable outdoor enclosures.

Modern Building Code Dynamics

Increasingly severe climate events have driven extensive revisions to municipal building codes governing attached and freestanding residential patio structures. Local building departments enforce strict wind uplift and seismic resistance requirements for shade frames attached directly to residential house walls. Wildfire safety standards across Western wildland-urban interface zones mandate non-combustible aluminum or structural steel framing materials to prevent ember ignition. Meeting modern code compliance requires installing factory-engineered structural frameworks accompanied by stamped structural calculations from licensed professional engineers.

Conceptual Frameworks and Mental Models

The Microclimate Thermodynamic Model

This environmental engineering model measures how overhead louver structures regulate ground temperatures by controlling direct solar radiation and convective airflow. Closed louver blades reflect intense solar rays upward, preventing dark concrete patio pavers from storing thermal energy during daytime hours. Opening louver blades partially creates a natural chimney effect that draws cool ambient air across lower patio seating areas.

Structural Load Transfer Matrix

This mechanical engineering framework traces how wind, snow, and dead weight transfer through horizontal rafters down into ground foundations. Overhead loads travel outward through primary support beams, passing into vertical structural posts anchored securely inside concrete piers. Utilizing rigid moment-resisting corner connections eliminates diagonal knee braces, preserving clean architectural sightlines and open patio access paths.

Material Life Cycle Index

This lifecycle analysis model evaluates total ownership costs by balancing initial material fabrication against recurring maintenance labor and replacement expenses. Low-cost wood or vinyl shade kits feature lower initial purchase costs but demand frequent painting, sealing, or structural replacement. High-grade powder-coated aluminum or structural steel systems carry higher initial investment costs but eliminate recurring maintenance labor entirely.

Key Categories or Variations Compare modern pergola options

Extruded Aluminum Shade Assemblies

Extruded aluminum frameworks offer high strength-to-weight ratios, precise manufacturing tolerances, and total resistance to organic wood rot and rust decay. Structural aluminum components assemble cleanly using hidden internal brackets, creating sleek architectural profiles that complement modern residential building designs. Architectural powder-coated finishes resist ultraviolet fading, chalking, and salt air pitting without requiring recurring surface painting maintenance over decades.

Motorized Louvered Roof Networks

Automated louvered pergolas feature dual-walled aluminum blades that rotate up to 140 degrees via remote control, smartphone apps, or weather sensors. Rain sensors close louver blades automatically when moisture is detected, channeling water away through concealed internal post gutters. Motorized louver systems deliver exceptional operational flexibility, allowing homeowners to adjust shade coverage, natural ventilation, and complete rain protection instantly.

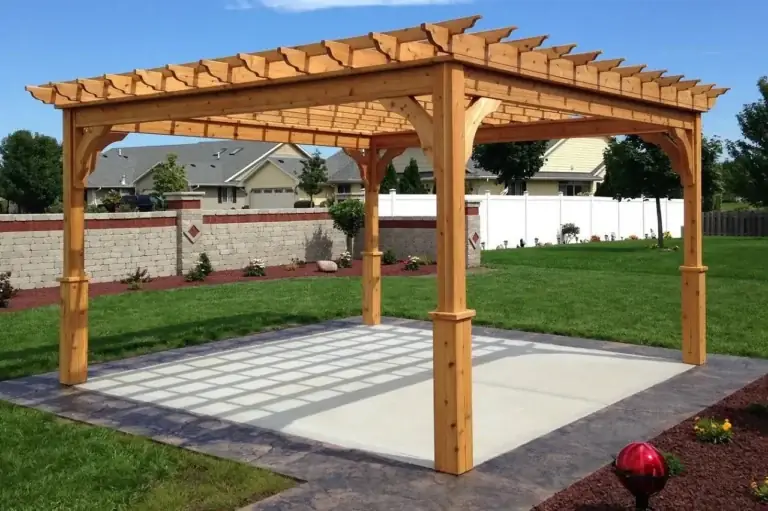

Western Red Cedar Frameworks

Cedar shade structures provide rich natural wood grain aesthetics, warm organic textures, and excellent natural resistance to decay and insect damage. Kiln-dried cedar timbers maintain dimensional stability across changing seasons, minimizing severe wood twisting, checking, or warping after outdoor structural installation. Cedar frameworks require periodic application of penetrating oil sealers or exterior stains to preserve deep natural colors against ultraviolet bleaching.

Heavy Structural Steel Systems

Heavy structural steel frameworks deliver incredible tensile strength, allowing slender post profiles to support massive cantilevered roof spans cleanly. Welded steel structures coated with zinc-rich anti-corrosion primers and fluoropolymer finishes offer exceptional durability against severe atmospheric exposure. Steel systems suit high-end contemporary architectural projects where wide clear openings, minimal post clutter, and extreme wind resistance are required.

Fiber-Reinforced Composite Structures

Composite shade frameworks combine recycled wood fibers and dense synthetic polymers to create dense structural members that resist moisture absorption. Composite beams require zero painting or staining, offering high resistance to splintering, cracking, and insect attack across changing outdoor seasons. Internal structural aluminum core tubes provide necessary stiffness across wider spans, preventing thermal sagging distortion under direct solar heat exposure.

Modular Vinyl Overhead Systems

Vinyl patio structures offer an affordable exterior shade option that requires minimal surface washing and zero recurring stain maintenance over time. Structural aluminum inserts installed inside hollow vinyl posts and beams provide necessary load-bearing strength across standard patio spans. Vinyl frames resist rain moisture and insect damage, though lower-grade vinyl materials expand noticeably and become brittle during extreme winter freezing.

Architectural System Comparison

Material System	Weathering Longevity	Structural Span Capacity	Annual Maintenance Need	Expected Service Life	Initial Financial Investment
Extruded Aluminum	Exceptional	High	Very Low	40 – 50+ Years	High
Motorized Louvers	High	High	Low	25 – 35 Years	Very High
Western Red Cedar	Moderate	Moderate	High (2-3 Years)	20 – 30 Years	Moderate
Structural Steel	High	Exceptional	Low to Moderate	50+ Years	Very High
Fiber Composite	Good	Moderate	Low	20 – 25 Years	Moderate to High
Modular Vinyl	Fair	Low (Needs Inserts)	Minimal	15 – 20 Years	Low

Strategic Material Selection Logic

Selecting among available architectural shade systems requires matching site-specific environmental stressors against long-term maintenance preferences and project budgets. Coastal homes exposed to high salt spray levels should prioritize marine-grade powder-coated aluminum or composite frames to prevent rust. High-altitude mountain properties subject to heavy winter snow packs require structural steel or heavy timber frameworks engineered for high live loads.

Detailed Real-World Scenarios Compare modern pergola options

Coastal Marine Atmosphere

A oceanfront estate in Florida required a shade framework capable of resisting aggressive salt spray corrosion and Category 4 hurricane winds. Designers specified a heavy-gauge extruded aluminum frame equipped with stainless steel post base anchors set into deep concrete piers. The framework incorporated motorized dual-walled louver blades that seal shut automatically during heavy rain, redirecting water into internal post drainage paths. The aluminum structure resisted coastal salt oxidation completely while surviving high wind events without suffering structural damage.

Alpine Heavy Snow Environment

A mountain home in Colorado experienced heavy winter snow accumulation that crushed lightweight patio structures and damaged underlying wood decks. Structural engineers specified a heavy glued-laminated timber frame utilizing ten-inch square posts reinforced with internal steel flitch plates. Heavy-duty steel post anchors elevated timber bases above winter snow drifts, preventing wood end-grain rot and moisture absorption. The engineered timber assembly supported heavy winter snow packs safely while providing a striking architectural focal point.

High-Heat Desert Microclimate

A residence in Arizona featured a south-facing concrete patio that absorbed extreme summer heat, making outdoor spaces unusable during daytime hours. Installers constructed a motorized louvered aluminum framework equipped with automated solar tracking sensors and integrated high-pressure misting lines. Rotating louver blades blocked direct sunlight during peak thermal hours, lowering patio surface temperatures by twenty-five degrees Fahrenheit consistently. The thermal reduction converted an overheated desert patio into a comfortable, energy-efficient outdoor living room throughout summer months.

Urban High-Wind Rooftop Zone

A high-rise penthouse in New York required a lightweight shade structure installed across a exposed rooftop patio subjected to high wind corridors. Strict building weight limits restricted heavy masonry, while municipal codes mandated non-combustible materials and certified wind uplift calculations up to 120 mph. Engineers specified a custom cantilevered structural steel frame anchored directly to primary roof structural steel using heavy chemical epoxy anchors. The engineered steel frame provided secure overhead shade without exceeding roof weight limits or risking wind detachment during winter storms.

Planning, Cost, and Resource Dynamics

Financial Lifecycle Investment Metrics

Evaluating architectural shade investments requires balancing initial material purchase and installation costs against ongoing maintenance, repair, and replacement expenses over time. Low-cost wood or vinyl kits carry lower upfront prices but require frequent staining, component replacement, or total rebuilding after fifteen years. High-grade aluminum, steel, or motorized louvered structures involve higher initial costs but eliminate recurring maintenance labor, delivering lower total ownership expenses over decades.

System Material Option	Initial Installed Cost Per Sq Ft	Annual Maintenance Cost	Estimated Service Life	25-Year Lifecycle Cost Index
Modular Vinyl Kit	$15 – $25	Minimal ($50)	15 – 20 Years	Moderate
Western Red Cedar Frame	$35 – $60	High ($300 – $600)	20 – 30 Years	High (Staining Labor)
Powder-Coated Aluminum	$50 – $85	Minimal ($25)	40 – 50+ Years	Low
Motorized Louvered Roof	$85 – $150+	Low ($100 – $200)	25 – 35 Years	Moderate
Structural Steel / Glulam	$75 – $130	Moderate ($200)	40 – 50+ Years	Low to Moderate

Tools, Strategies, and Support Systems Compare modern pergola options

Precision Rotary Laser Levels

Rotary laser levels establish accurate post height benchmarks across uneven concrete slabs or sloping backyard deck surfaces during frame assembly. Ensuring precise post height alignment prevents twisted horizontal support beams, allowing motorized louver mechanisms to rotate smoothly without mechanical binding.

Heavy-Duty Structural Post Anchors

Heavy-gauge galvanized or stainless steel post bases elevate vertical timber pillars above concrete surfaces, stopping moisture wicking into lower wood fibers. Elevated post anchors provide certified uplift and lateral resistance, preventing structural frame detachment during severe high-wind events.

Penetrating Exterior Timber Oils

High-grade exterior wood oils containing ultraviolet blockers penetrate deep into timber fibers without forming hard surface films that peel off later. Regular wood oil application prevents surface checking, reduces color fading, and preserves structural timber density across changing outdoor weather seasons.

Digital Coating Thickness Gauges

Digital powder-coat gauges measure paint film thickness across aluminum shade frame components during quality control inspections on site. Verifying adequate coating thickness ensures that metal frameworks feature complete surface protection against salt air pitting and ultraviolet finish breakdown.

Computational Wind Pressure Modeling

Engineering software models regional wind velocity, pressure vectors, and structural aerodynamics across proposed shade frame designs before fabrication starts. Computational wind modeling verifies that framing members, post anchors, and concrete footings comply with local structural engineering codes safely.

Structural Chemical Epoxy Anchors

Two-part structural epoxy systems secure threaded steel anchor rods deep into cured concrete footings or existing residential brick walls. Chemical anchors distribute high tension loads evenly across surrounding masonry, providing far superior holding strength than simple mechanical expansion anchors.

Risk Landscape and Failure Modes Compare modern pergola options

Concrete Footing Frost Heaving

Installing concrete post footings above local frost depth lines causes winter ground freezing to lift footings and vertical support posts upward out of alignment. Structural ground movement distorts overhead beams, cracks concrete slabs, and causes attached home ledgers to separate from residential house framing walls. Digging post footings below municipal frost depth lines prevents seasonal freeze-thaw ground shifting, maintaining structural stability year-round.

Water Leakage at Attached House Ledgers

Attaching patio framing ledgers directly through home siding without proper flashing allows rainwater to run behind wood framing into wall cavities. Trapped moisture rots structural house rim joists, ruins interior drywall, and encourages hidden mold growth inside residential wall assemblies. Installing continuous stainless steel Z-flashing over ledger boards channels water safely away over exterior siding surfaces.

Dissimilar Metal Galvanic Corrosion

Using standard zinc-plated screws to fasten stainless steel brackets onto aluminum frames triggers rapid galvanic corrosion in humid coastal environments. Dissimilar metals contacting each other in the presence of moisture create electrochemical reactions that corrode structural fasteners rapidly. Utilizing insulated nylon washers and coated stainless steel hardware isolates dissimilar metals, preventing structural joint failure.

Governance, Maintenance, and Long-Term Adaptation

Regular Inspection Schedules

Implementing structured annual inspection routines preserves structural safety and extends the operational service life of outdoor architectural shade frames. Regular checks allow property owners to identify loose hardware, wood finish breakdown, or mechanical louver wear before costly structural damage occurs.

• Foundation Anchor Inspection: Examine post base brackets for structural rust, concrete cracking, or loose anchor nuts requiring mechanical tightening.

• Structural Frame Alignment Check: Verify that horizontal beams remain plumb and level without developing noticeable center span sagging distortion.

• Motorized Drive Mechanism Audit: Test louver rotation mechanisms, clean internal gutter channels, and lubricate moving drive pivot pins annually.

• Wood Finish Evaluation: Check wood surfaces for moisture checking, coating peeling, or silvering ultraviolet discoloration needing fresh oil application.

• Ledger Flashing Verification: Inspect house attachment points to ensure counter-flashing remains sealed against house siding without water gaps.

Measurement, Tracking, and Evaluation

System Quality Documentation

Maintaining detailed structural installation records, engineering certifications, and maintenance logs preserves property value and supports insurance coverage.

• Engineering Plan Audit: Stamped engineering calculations verified wind uplift rating of 115 mph; post footings inspected at 36-inch depth.

• Louver System Calibration: Programmed motor limit switches; verified rain sensor auto-close function operates within five seconds of moisture contact.

• Wood Maintenance Log: Applied penetrating exterior timber oil across Western Red Cedar frame; verified complete surface moisture repellency.

Common Misconceptions and Oversimplifications Compare modern pergola options

The Zero-Maintenance Assumption

Assuming that aluminum or vinyl shade structures require zero ongoing maintenance remains a widespread misconception among prospective home buyers. Cleaning internal gutter channels, washing salt spray off powder-coated surfaces, and checking motor drives are vital tasks for long-term reliability.

The Uniform Solar Shading Fallacy

Believing that all overhead rafter systems provide equal shade coverage ignores critical solar trajectory calculations and rafter spacing mathematics. Rafters spaced too far apart permit intense solar heat penetration during peak summer afternoon hours, failing to cool patio spaces effectively.

The Unengineered Ledger Assumption

Expecting standard house wall studs to support heavy attached patio shade frames without verified structural blocking oversimplifies residential wall mechanics. Heavy wind uplift or snow accumulation tears unreinforced ledgers directly off exterior walls, causing severe house structural damage.

Ethical, Practical, or Contextual Considerations

Sustainable Forestry Certification

Selecting FSC-certified Western Red Cedar ensures that natural wood shade materials originate from responsibly managed forests that protect forest ecosystems. Choosing sustainably harvested timber reduces environmental impact while supporting long-term forestry renewal and natural carbon sequestration.

Wildfire Risk Mitigation

Utilizing non-combustible aluminum or structural steel framing materials across wildfire-prone zones significantly reduces structural home ignition risks during forest fires. Metal shade structures eliminate massive fuel sources adjacent to primary residence walls, creating defensive space around residential properties.

Conclusion

Deciding to compare modern pergola options thoroughly requires balancing regional weather threats, material metallurgy, and structural engineering mechanics together cleanly. Accommodating dynamic wind loads, managing rainwater drainage, and selecting non-corrosive structural materials ensures long-term outdoor architectural performance. Homeowners who invest in certified structural engineering, high-grade materials, and systematic maintenance protocols secure comfortable outdoor living spaces and enduring residential property value.
